Veowork VCP2060 Full HD 1080p/2MP USB3.0 SDI & Lan Conferencing Camera Elite with 12x Optical Zoom

Veowork VCP2060 camera boasts exceptional functionality, superior performance, and a wide range of interfaces. Its advanced ISP processing algorithms deliver vivid images with remarkable depth, high resolution, and exceptional color rendition. Additionally, it supports H.264/H.264+ encoding, ensuring smooth and clear motion video playback, even in low-bandwidth conditions.

VCP2060 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60fps.

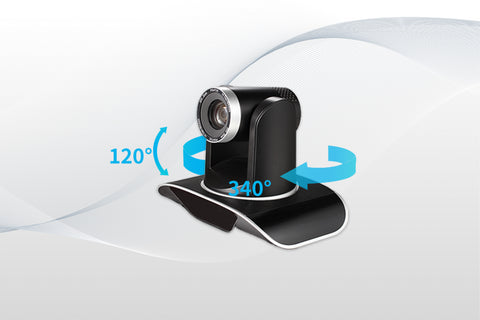

By adopting step driving motor mechanism, VCP2060 camera works with quiet and smooth movement.

12X, 20X optical zoom lens for options.

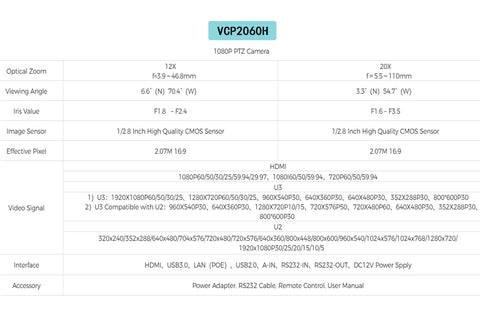

Model VCP2060H
1080P PTZ Camera
Optical Zoom 12X 20X
    f=3.946.8mm     f5.5110mm
Viewing Angle 6.6°N70.4°W 3.3°N54.7°W
Iris Value F1.8   – F2.4 F1.6 – F3.5
Image Sensor 1/2.8" 1/2.8"
Effective Pixel 2.07M 16:9 2.07M 16:9
Video Signal HDMI
1080P60/50/30/25/59.94/29.97,
1080I60/50/59.94, 720P60/50/59.94
U3
U31920x1080P60/50/30/25, 1280x720P60/50/30/25,
960x540P30, 640x360P30, 640x480P30,
352x288P30, 800x600P30
U3 Compatible with U2960x540P30, 640x360P30,
1280x720P10/15, 720x576P50, 720x480P60,
640x480P30, 352x288P30, 800x600P30
U2
320x240/352x288/640x480/704x576/720x480/720x576/
640x360/800x448/800x600/960x540/1024x576/
1024x768/1280x720
1920x1080P30/25/20/15/10/5
Interface HDMI, USB3.0, LAN(POE), USB2.0, A-IN, RS232-IN,
RS232-OUT, DC12V Power Spply
Accessory Power Adapter, RS232 Cable, Remote Control, User Manual





Model VCP2060S
1080P PTZ Camera
Optical Zoom 12X 20X
    f=3.946.8mm     f5.5110mm
Viewing Angle 6.6°N70.4°W 3.3°N54.7°W
Iris Value F1.8   – F2.4 F1.6 – F3.5
Image Sensor 1/2.8" 1/2.8"
Effective Pixel 2.07M,   16:9 2.07M,   16:9
Video Signal HDMI/SDI
1080P60/50/30/25/59.94/29.97,
1080I60/50/59.94, 720P60/50/59.94
U2
320x240/352x288/640x360/640x480/704x576/704x480/
720x576/800x448/800x600/960x540/1024x576/
1024x768/1280x720
    1920x1080P30/25/20/15/10/5
Digital Zoom 10X
Interface HDMI, SDI, LAN(POE), USB2.0, A-IN, RS232-IN, RS232-OUT,
RS485, Rotary Dip Switch, DC12V Power Supply
Accessory Power Adapter, RS232 Cable, Remote Control, User Manual
