Veowork TC5H5H Face Liveness Detection and Matching Dual Camera with 5MP WDR and 5MP NIR

● 1/2.5" Industrial grade 5MP HD wide dynamic image sensor
● RGB: 100DB wide dynamic range, IR: 100DB suitable for complex light environments
● 100° (diagonal) super wide-angle distortion-free high-definition 500W pixel high-definition lens
● 40CM to infinity clear imaging
● 1500TVL resolution
● 0.01Lux (F=1.2) low illumination
● 1.8W power consumption
● Stable operation in a wide temperature range of -20°C~+70°C
● Professional USB-IF WHQL ROHS CE (4KV/8KV) certification (passable)
● USB2.0 high-speed transmission
● UVC architecture, compatible with various systems of Windows XP&7&8.1&LINUX&MAC
● The surface is elegant black sprayed zinc-magnesium alloy shell with high-strength collision protection
● Standard AWM 2725 28AWG/IP 24AWG/2C USB2.0 cable
● Minimum platform configuration: CPU 1.7GHZ 512MB memory 40GB hard disk XP SP2 system

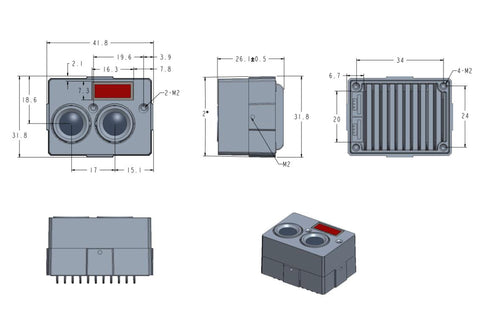

Product Dimension

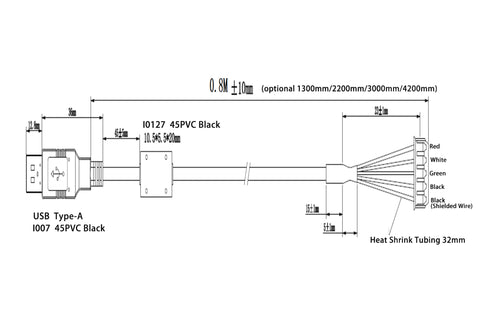

USB2.0 cable specification

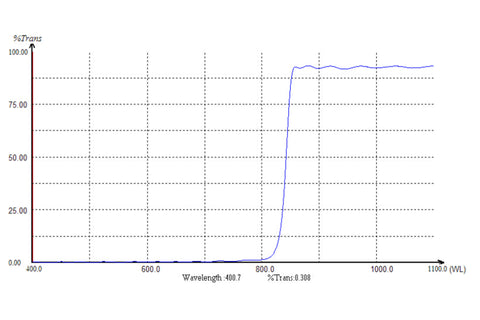

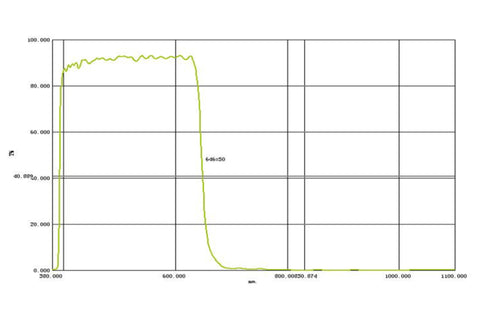

Filter Wavelength

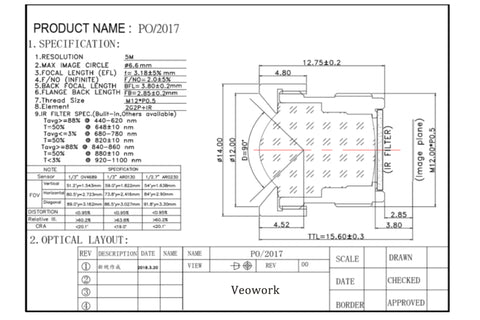

NIR camera

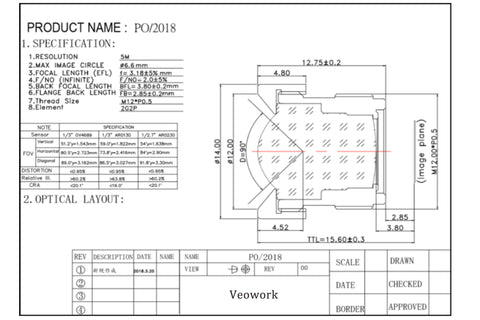

RGB-WDR camera

LENS Specifification

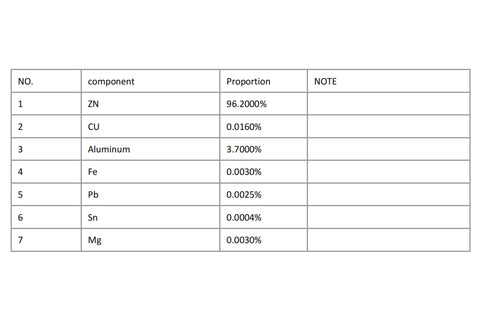

Case Material Proportion(mm)
